All Your Packages with Correct Weight

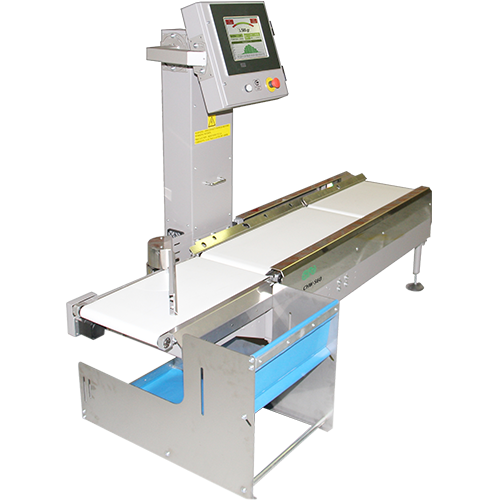

Checkweigher CHW-S60

  • You can check and be sure that all the packages have the correct weight
  • The production of 2 GirBagger packing machines can be checked by only one Checkweigher CHW-S60
  • Fast and accurate
  • Set alarm programs depending on weight parameters or number of packages rejected
  • Output level: up to 60 bags per minute for 1kg bags
  • Accuracy: +/- 5g (50 bpm) and +/-10g (60 bpm)
  • Weight range: 1.1 - 8.8 lbs.
  • Connectable to GirControl Plus for plant management and production control
  • Conveyor length: 2.1m in 3 sections
  • Touch screen
  • Programmable settings; maximum and minimum weight, STOP alarm according to the number of rejected bags
  • Informative parameters; maximum, minimum, average weight, rejected bags, weighted bags, bag weight histogram
  • Connect your Checkweigher to GriControl Plus: you will get accurate information to improve your productivity.
  • You can use a layout of a Giró packaging line with CHW-S60 which controls 2 GirBaggers
  • Ships from Vidalia, GA
