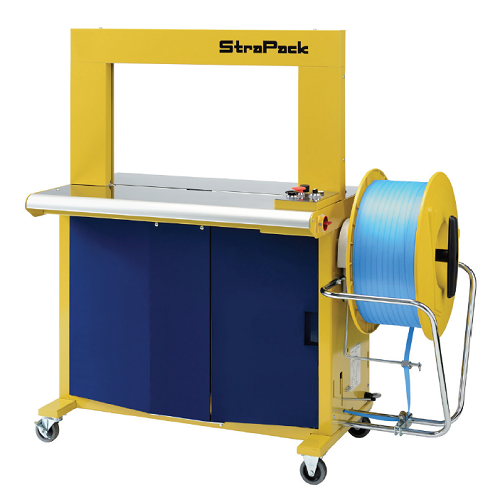

The SQ-800S with brushless DC motor for small packages boasts all of the advanced features of the SQ-800 such as self-loading, refeed and loop ejection. Ideal for strapping small bundles of plastic pipes, steel rod, aluminum sash, etc. SQ-800S tightly straps packages as small as 1-1/2 in. wide x 1-1/8 in. high)


  • Standard strapping rate is 54 straps/min, even when a tension is applied. The machine is ready to operate in less than 25 seconds, contributing to increased packaging line efficiencies.
  • The upgraded sealing head utilizing the DC motors eliminates more moving parts and results in less dusting from plastic strapping. It also reduces the maintenance cost. Strapack's signature self-lubricating design also reduces wear and tear, makes the maintenance easier, and increase operational life of the machine.
  • Optional features include: Adjustable Table height for easy integration, Foot Bar Switch for hands-dree operation and Cycle counter
  • Standard Specifications (Arch size 25" wide x 16" high)
  • Width is 49-3/8 in.
  • Height is 51-3/8 in.
  • Depth is 24 in.
  • Weight is 306 lbs.
  • Table Height is 31-1/4 in.
  • Minimum Package Size for wood products is 1-1/2 in. wide x 1-1/8 in. high
  • Minimum Package Size for pipe products is a diameter of 1-1/8 in. X 2in.
  • Joint is Heat Seal Polypropylene
  • Strap Widths are 1/4,3/8,1/2 in.
  • Strap Tension is 176 lbf
  • Ships from Union City, CA
