The Masterplat is designed for customers wrapping up to 30 loads per hour. It comes with productivity improving standards like a Self-Learning Wrap Program, 110" wrap height and a heavy duty 4,400 pound capacity turntable.

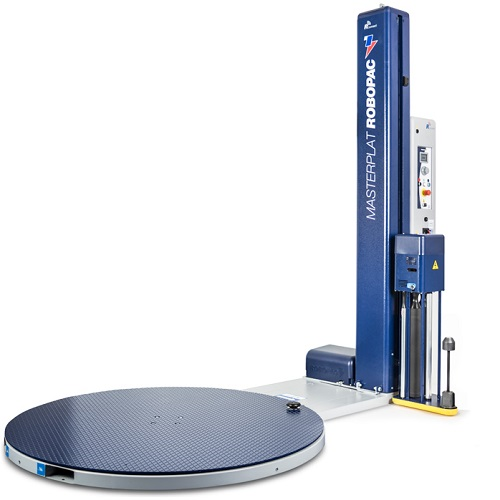

Masterplat

  • Like all Robopac stretch wrappers, the Masterplat is safe for your operators. The Roll Carriage is positioned on the operator side of the machine to keep your operators out of the wrapping area. It comes equipped with standard safety features like a Roll Carriage Anti Fall Device & Roll Carriage Safety Stop, and a 65" diameter diamond plated steel turntable that prevents your load from shifting during the wrapping process and accommodates the standard 40" X 48" pallet reducing the risk of product damage or injury from overhang
  • The Masterplat turntable is supported by 28 heavy duty casters and can handle a 4,400 lb load and you also have the option to increase weight capacity to 5,500 lbs. This machine was designed for a demanding environment, it includes many standard performance and application features that come at a premium and are often not available from other manufacturers.
  • Production Speed: Up to 30 LPH
  • Turntable Speed: 5 – 12 RPM
  • Turntable Drive: 1 HP VAC
  • Turntable Size: 65" Diameter
  • Maximum Load Height: 110"
  • Maximum Load Weight: 4400 lbs
  • Warranty: 3 Years
  • Ships from Lawrenceville, GA
